Strong Customer Authentication (SCA)

note

SCA is only available through Identity Orchestration (IO) Workflows combined with Pushed Authorization Requests (PAR) and Rich Authorization Requests (RAR).

Overview

Strong Customer Authentication (SCA) is mandated by PSD2 for online payments and high-value operations. It requires multi-factor authentication, explicit user consent to transaction details, and cryptographic binding of the approval to a specific amount and payee — known as Dynamic Linking.

LoginRadius enables SCA through the following building blocks:

Building Block	Role	RFC
PAR (Pushed Authorization Request)	Sends sensitive auth params over a back-channel instead of the browser URL	RFC 9126
RAR (Rich Authorization Request)	Attaches structured authorization_details (amount, currency, payee, type) to the PAR	RFC 9396
IO Workflow	Orchestrates SCA steps: session check → risk evaluation → MFA challenge	—
Script node	Reads authorization_details from SharedState; runs risk logic; can block transactions	—
Push MFA	Sends transaction details to mobile device; binds approval to specific transaction via challenge	—
linking_id	Server-generated UUID correlating the browser session with the mobile MFA device	—

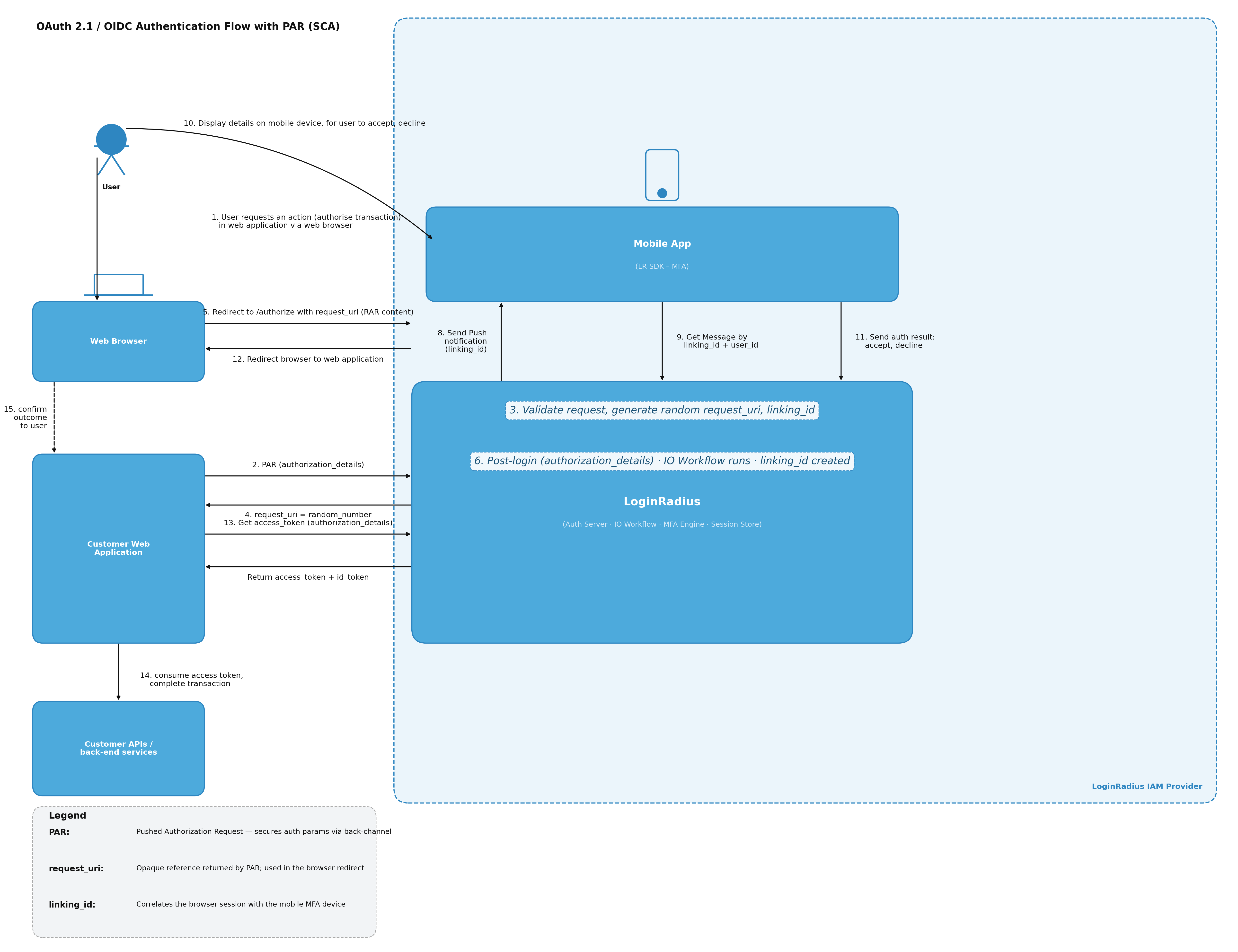

Architecture Overview

How It Works — End-to-End Flow

1. The customer app POSTs to /par with authorization_details. LoginRadius generates a request_uri and linking_id server-side — neither value touches the browser URL.
2. The customer app redirects the browser to /authorize using only the opaque request_uri.
3. The LoginRadius Authorization Server resolves the request_uri and launches the configured IO Workflow.
4. The Has Session node gates the flow. If no session exists, a child login workflow runs first, then re-enters the SCA script.
5. The Script node reads authorization_details from lrObject.Session.SharedState (auto-populated from the PAR payload), performs risk evaluation, sets verified fields for downstream nodes, and can block high-risk transactions via hook.setError().
6. The Send Push Notification node pushes transaction details to the mobile device. The message template references SharedState: {{sharedstate.verified_amount}} {{sharedstate.currency}} to {{sharedstate.verified_payee}}.
7. The mobile app uses the LR SDK to call GET /identity/v2/auth/push/par/{linking_id} to fetch authorization_details + challenge, then displays them to the user for explicit confirmation (Dynamic Linking).
8. The user approves → mobile signs the challenge with RSA private key → Verify Push Notification validates the signature.
9. Workflow succeeds → LoginRadius issues an OIDC authorization code.
10. The customer app exchanges the code at /token. The resulting id_token contains authorization_details and linking_id claims.

Dynamic Linking

The linking_id correlates the browser session with the mobile MFA device. The user sees and approves the exact amount and payee. This cryptographic binding satisfies PSD2's Dynamic Linking requirement.

Prerequisites

• OIDC application configured in LoginRadius Admin Console
• IO Workflow created and published (see IO Workflow Creation)
• Push MFA and/or Passkey enabled on the OIDC app
• LR Mobile SDK integrated in the customer's mobile app

Step 1: Configure the OIDC Application

In the Admin Console, navigate to Applications → select your app → Tokens tab → Authorization Requests section.

Enable PAR

• Toggle Pushed Authorization Request (PAR) ON.
• Optionally enable Require PAR to force all authorization requests through the PAR endpoint.

warning

Only enable Require PAR on a dedicated SCA OIDC app. Any /authorize call without a request_uri will be rejected. Create a separate app for SCA flows and leave standard login apps unchanged.

Enable RAR

• Toggle Rich Authorization Request (RAR) ON.
• Under Allowed RAR Types, click + Add Type and enter your type string (e.g. lr_payment).
• This value must match the type field in authorization_details. Matching is case-insensitive.
• Multiple types are supported (e.g. account_change, data_export).

Step 2: Build the SCA Workflow

Create an IO Workflow (e.g. named strongcustomerauthentication). Recommended node topology:

Has Session
  ├── true  → Script (risk evaluation)
  │             ↓
  │           Identity Lookup
  │             ↓
  │           MFA Configured State
  │             ├── Push Notification → Send Push Notification → Verify Push Notification → ✅ Success
  │             ├── Passkey           → Verify Passkey → ✅ Success
  │             └── false (not set up) → Configure MFA
  │                                        ├── Push Notification → Configure Push Notification → Verify Push → ✅ Success
  │                                        └── Passkey → Verify Passkey → ✅ Success
  └── false → Child Workflow (login) ──→ Script (loops back after login)

Node Configuration Reference

Node	Type	Key Configuration
Has Session	hassession	Entry node. Authenticated users go to Script; unauthenticated users go to Child Workflow.
Script	executecustomscript	Risk evaluation script (see Step 3). Reads SharedState. Can block via hook.setError().
Identity Lookup	identitylookup	Resolves full user identity for MFA state routing.
MFA Configured State	mfastate	Methods: Push Auth, Passkey. Routes to verify if configured; Configure MFA if first time.
Send Push Notification	sendpushnotification	Message: "Authorize payment of {{sharedstate.verified_amount}} {{sharedstate.currency}} to {{sharedstate.verified_payee}}"
Verify Push Notification	verifypushnotification	Validates RSA signature. Detects SCA re-auth mode (no new RAAS session).
Verify Passkey	verifypasskey	Alternative second factor.
Configure Push Notification	configurepushnotification	First-time push MFA setup. QR Code Width: 200.
Child Workflow	childworkflow	Calls login sub-workflow (e.g. scauthlogin). On success, loops back to Script.

Step 3: Script Node — Risk Evaluation with SharedState

The Script node runs as a serverless JavaScript function within the workflow. authorization_details fields from the PAR payload are automatically mapped into lrObject.Session.SharedState before the script executes.

const axios = require("axios");

exports.execute = async (lrObject, hook) => {
  try {
    if (!lrObject?.IsAuthenticated) {
      hook.setError(401, "Not authenticated", "Login required");
      return;
    }

    const email = Array.isArray(lrObject?.Identity?.Email)
      ? lrObject.Identity.Email[0]
      : lrObject?.Identity?.Email || "";

    if (!email) {
      hook.setError(400, "Missing email", "Email is required for risk evaluation");
      return;
    }

    // authorization_details fields are automatically populated in SharedState
    const sharedState = lrObject?.Session?.SharedState || {};
    const amount   = sharedState.amount   || "";
    const currency = sharedState.currency || "";
    const payee    = sharedState.payee    || "";

    // Call your risk evaluation engine
    const risk = await axios.post("https://risk.example.org/score", {
      email,
      authorization_details: { amount, currency, payee },
    }, { headers: { "Content-Type": "application/json" }, timeout: 5000 });

    if (risk.data.score >= 80) {
      hook.setError(403, "HIGH_RISK", `Transaction blocked — risk score: ${risk.data.score}`);
      return;
    }

    // Set verified fields — used by the Send Push Notification message template
    hook.sharedState.set("verified_amount", amount);
    hook.sharedState.set("verified_payee", payee);
    hook.sharedState.set("sca_verified", "true");

    // Inject SCA claims into the final ID token
    hook.idToken.setCustomClaim("sca_verified", "true");
    hook.idToken.setCustomClaim("risk_score", String(risk.data.score));

  } catch (error) {
    hook.setError(500, "SCA_FAILED", error?.message || "Unexpected error");
  }
};

Available npm packages in IO scripts: axios, underscore, moment, async, @slack/webhook

For more on the Script node and SharedState, see IO Scripts.

Step 4: API Reference

Pushed Authorization Request (PAR)

POST authorization parameters back-channel. Returns a request_uri valid for ~90 seconds.

curl --location 'https://{your-domain}/api/oidc/{app-name}/par' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'client_id={client_id}' \
--data-urlencode 'redirect_uri={redirect_uri}' \
--data-urlencode 'scope=openid email profile' \
--data-urlencode 'response_type=code' \
--data-urlencode 'response_mode=query' \
--data-urlencode 'state={state}' \
--data-urlencode 'workflow=strongcustomerauthentication' \
--data-urlencode 'authorization_details={"type":"lr_payment","amount":"500","currency":"EUR","payee":"Stripe"}'

Response:

{
  "request_uri": "urn:ietf:params:oauth:request_uri:07824f9f-4782-4c61-9ac6-d61cf8f7cb09",
  "expires_in": 90
}

Authorize with request_uri

Use the opaque request_uri in /authorize — no sensitive data appears in the browser URL:

curl --location 'https://{your-domain}/service/oidc/{app-name}/authorize?\
client_id={client_id}\
&request_uri=urn%3Aietf%3Aparams%3Aoauth%3Arequest_uri%3A07824f9f-4782-4c61-9ac6-d61cf8f7cb09'

Mobile: Fetch Authorization Details (Dynamic Linking)

When the push notification arrives, the LR SDK calls this endpoint to retrieve the exact transaction the user is being asked to approve:

GET /identity/v2/auth/push/par/{linking_id}?apikey={apikey}

Response:

{
  "authorization_details": {
    "type": "lr_payment",
    "amount": "500",
    "currency": "EUR",
    "payee": "Stripe"
  },
  "challenge": "abc123..."
}

The mobile app displays: "Authorize payment of €500 EUR to Stripe?". On user approval, the SDK signs SHA256("Approved" + 2faToken + challenge) with the device's RSA private key and submits the approval. This RSA signature over the challenge provides cryptographic binding between the user's approval and the specific transaction.

If the user rejects the push notification or the approval times out, the Verify Push Notification node returns false. The workflow takes the failure path — the session status is updated to rejected, no authorization code is issued, and the browser receives an OAuth error response.
